BREMIS / Portable ground control
Full-size control. Field-ready
A premium portable ground control station, built around long battery endurance, dual 24-inch 4K touchscreens, 1,000 nits brightness, and the controls your aircraft needs. Designed and manufactured in the UK.
Request a GCS quotation Explore BREMIS
Built for a full day in the field
- 12 hours internal battery life.
- 2 × 24-inch 4K touchscreens, each rated at 1,000 nits.
- Setup time Within 5 minutes.

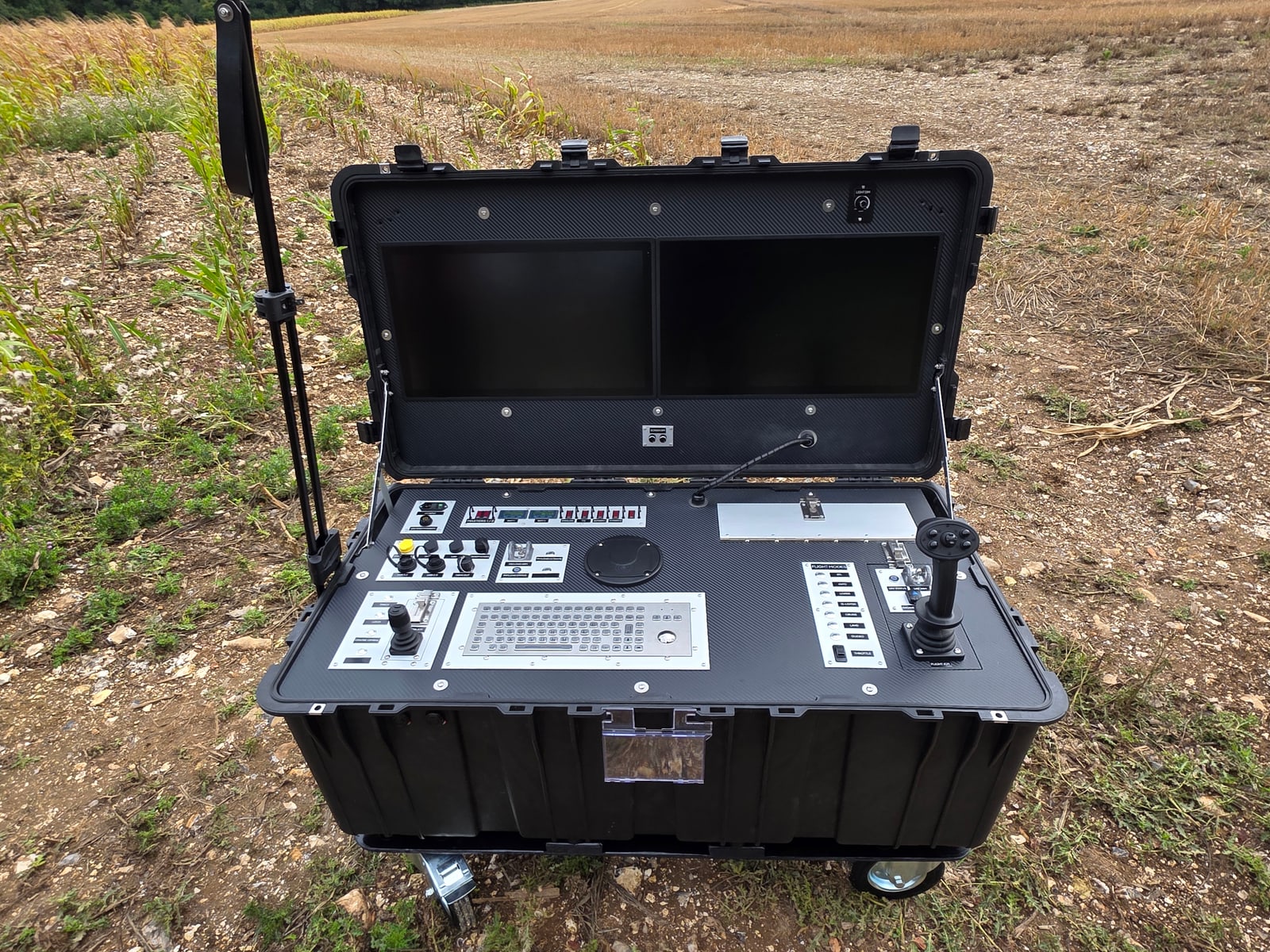

More screen. More room to work
Two large 24-inch 4K touchscreens give your team space for flight information, mapping and payload views. The spacious console brings pilot and payload controls together, with room for multiple operators during extended operations.
BREMIS combines a full-size working area with a portable rolling case. Dedicated physical controls, an integrated keyboard and trackball, and configurable inputs let us tailor the operator layout to your aircraft and software.
Long endurance. Self-contained power
With a 12-hour internal battery life, BREMIS is designed for prolonged work away from mains power. Battery monitoring panels keep power status visible, while fused master switches provide dedicated power control.
A 100–240 V AC input supports mains operation at 50/60 Hz.
The system also includes an aircraft ground-power supply.
Your aircraft. Your control system
Our control-system-agnostic approach means the station is configured around your aircraft, control software and communications requirements. Tell us what you need to connect and we will work through the integration with you.
- Radio integration: aircraft command, telemetry and payload links selected to suit your system.
- Starlink connectivity: available as a connectivity option for your ground setup, along with alternative connections and failover options such as 4G for redundancy.
- Rugged-laptop backup GCS: available alongside the main station, configured to suit your control software and operating requirements.
Software, radio compatibility and the role of each connection can be agreed for your configuration.

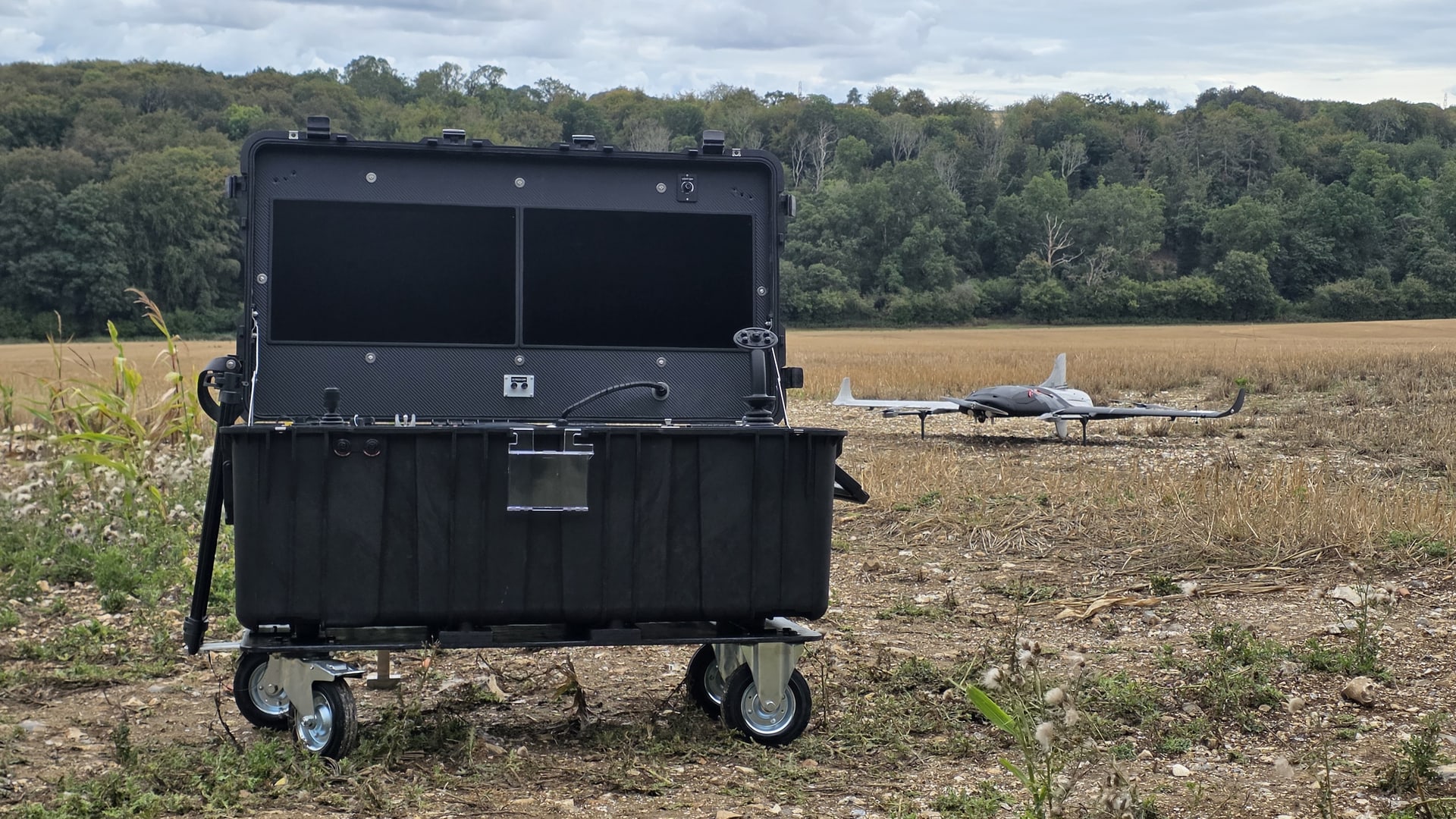

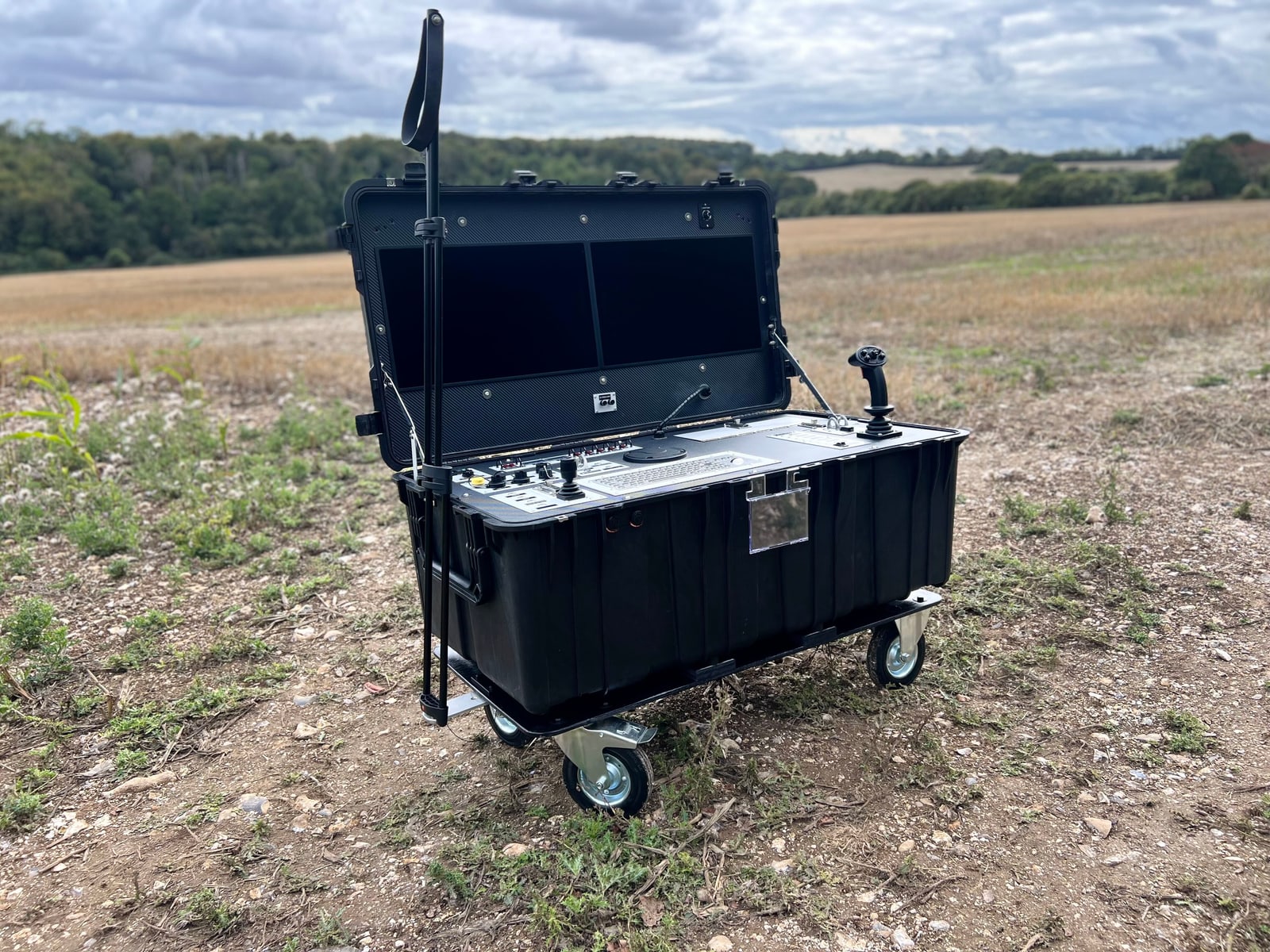

Ready to roll
A rolling case, internal batteries and built-in antennas keep the system mobile and self-contained. Setup can be completed within five minutes, with a similarly quick pack-down.
The 1.3 m-wide, 0.7 m-deep form factor provides a generous working area and space for different equipment. A built-in compartment keeps documents, spares and accessories such as the Starlink and backup rugged laptop together with the station.
Configure your station
We manufacture BREMIS in-house in the UK, with small-batch production as well as customer-specific configurations. The reference configuration includes:
- Pilot controls: Three-axis joystick with mini joystick, trigger and four push buttons, Hall-effect throttle, and eight or more additional configurable inputs.
- Payload controls: Three-axis, two-button joystick and six or more additional configurable inputs.
- Networking: three RJ45 Ethernet ports, with Power over Ethernet options.
- Connections: USB 3.2, USB 2.0, HDMI and auxiliary output.
- Operator input: keyboard and trackball, with a trackpad configuration available.
Let's specify your GCS
Tell us about your aircraft, control software, preferred radio links and the way your team operates. We can discuss a BREMIS configuration, the backup GCS and connectivity options, then prepare a quotation.
